Product Introduction

Overview

Neuron's Energy Management System is an advanced solution designed for modern buildings and industrial facilities, aiming to optimize energy usage, reduce energy costs, and promote sustainable development. The system integrates IoT, data analytics, and artificial intelligence technologies, and adds energy collection and recording capabilities. It comprehensively monitors, analyzes, and manages various energy resources, providing users with a highly visual and data-driven energy management experience.

Product Features

• Real-time Energy Monitoring: The system provides real-time energy consumption data, including various forms of energy such as electricity, water, and gas, and supports multiple data visualization methods to help users quickly understand energy usage status.
• Energy Collection and Recording: The system features robust energy collection and recording functions, automatically gathering and storing various types of energy data, including records from renewable energy sources (e.g., solar, wind). Users can easily review historical data, analyze energy usage trends, and utilize this data for long-term energy efficiency optimization.
• Energy Efficiency Analysis and Optimization: Through big data analysis and machine learning algorithms, the system can identify the root causes of energy waste, provide optimization suggestions, and automatically adjust system parameters to improve energy utilization efficiency.
• Carbon Management: Utilizes Internet of Things (IoT) devices, sensors, and data platforms to monitor energy usage and carbon emissions in real-time. This data can cover carbon emission sources in areas such as buildings, factories, and transportation.

Usage process

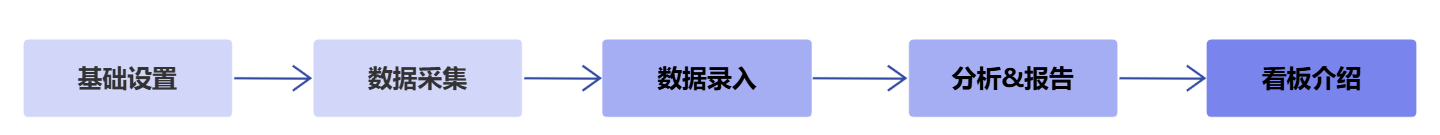

Please refer to the following steps to begin your configuration:

Step 1: Device Access to the Data Platform
Step 2: Basic Settings
Step 3: Data Collection
Step 4: Data Entry
Step 5: Analysis & Reporting
Step 6: Dashboard Introduction

Access methods and prerequisites

How to access

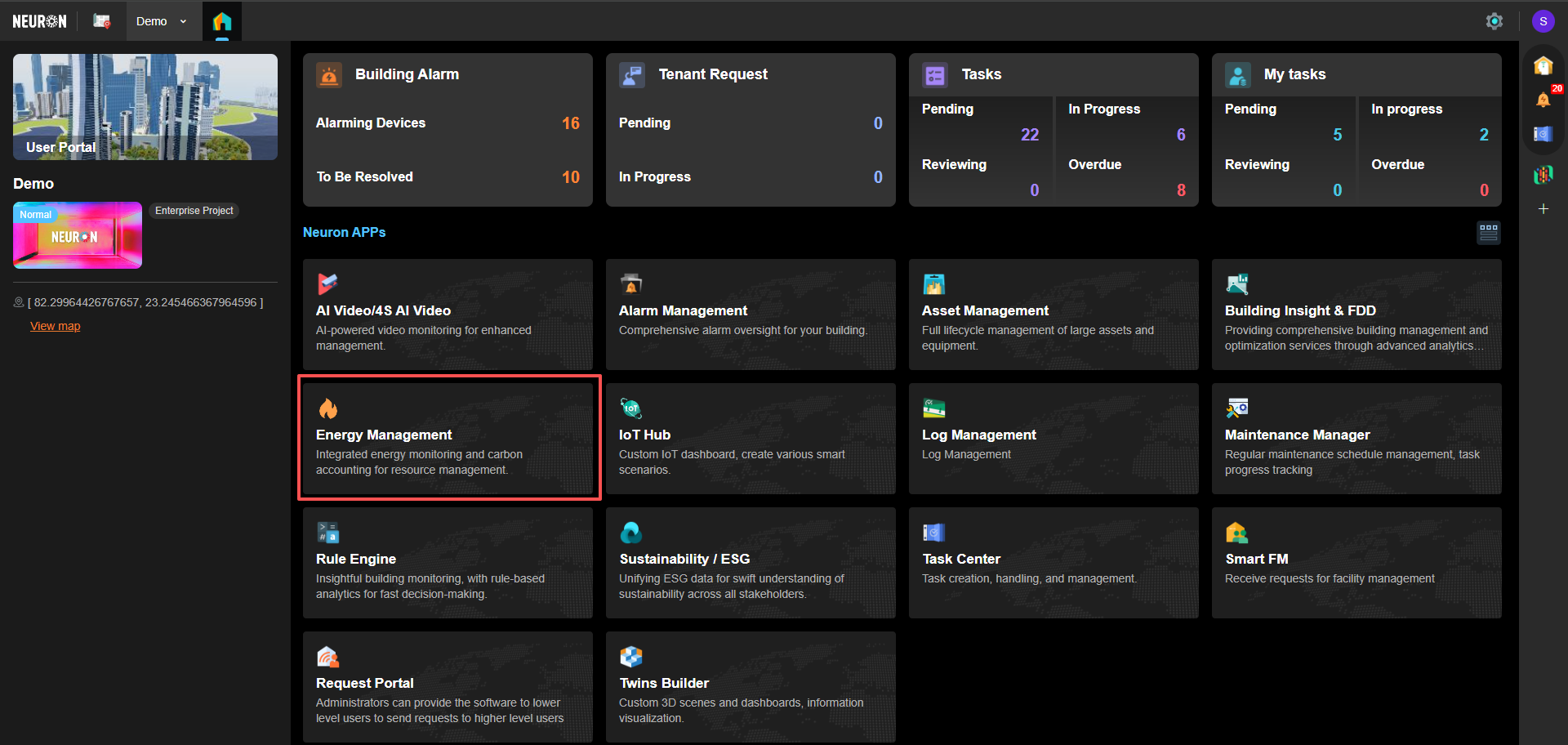

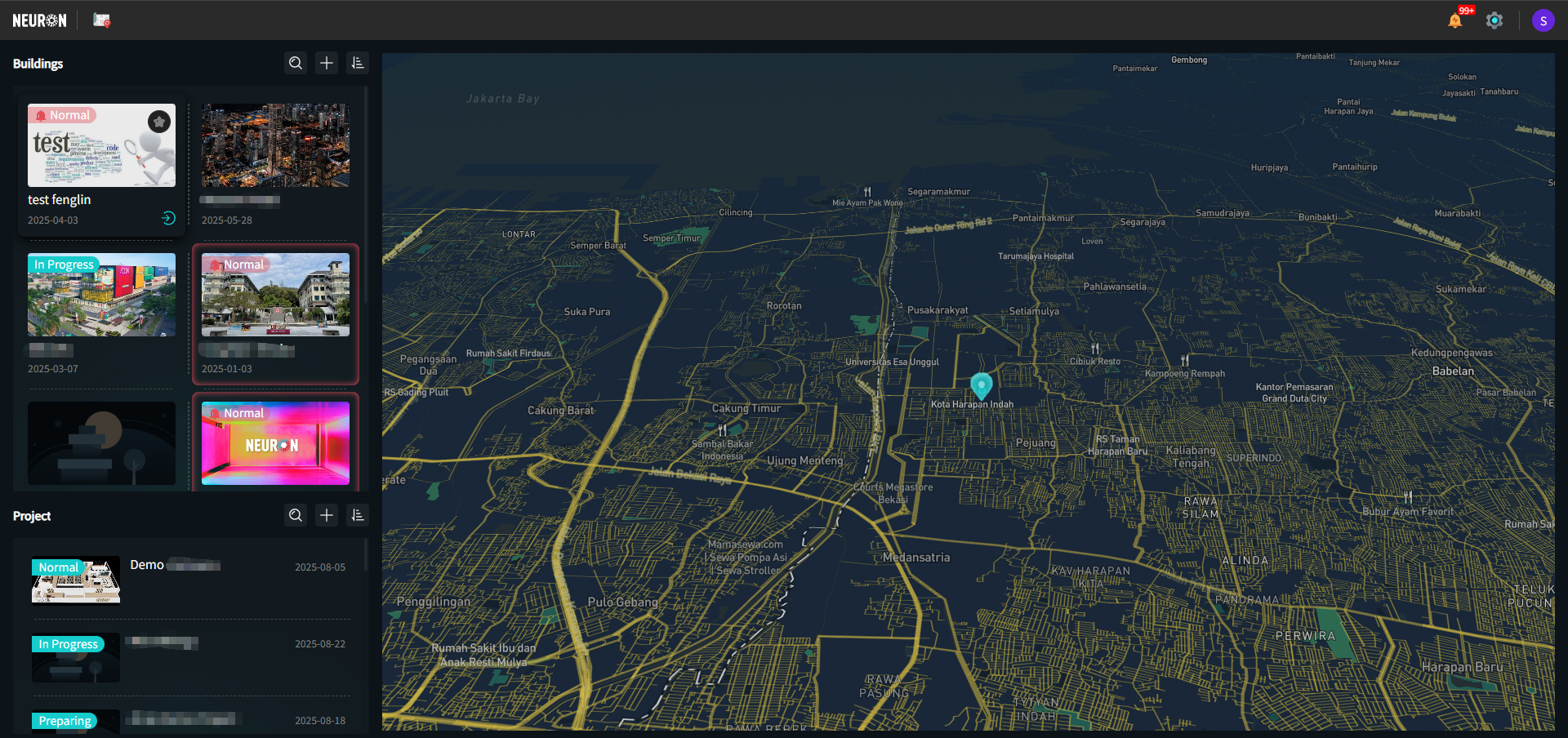

Access the official URL provided by the platform administrator through your browser and log in directly using your account. Go to your project and find "Energy Management" in the application list on the project homepage.

Before You Start

Permission configuration

To ensure proper access, your account needs to be invited to the project and have permission to view the Energy Management application. If you do not have this permission, please contact the project administrator or refer to [Invite Members to Join the Project] / [Install and Configure Permissions].

Prerequisite Configuration

Device Configuration: To automatically obtain accurate usage and carbon emission analysis for different time periods, it is necessary to ensure that the device has been successfully connected to the Neuron data platform and that the secondary calculation of the object model has been enabled and the relevant usage rules have been configured.

Terminology Explanation

Space: "Space" is a term used to denote the smallest unit in the energy management system. You can designate any real or virtual area as a space.

Device: Devices are used to monitor energy data and can be freely assigned to different spaces. The energy data of a space also comes from the data of its associated devices.

Analysis Item: Energy tracking analysis items can be created for specific cases. In different analysis projects, relevant data from different spaces can be compared.

Secondary Calculation: This function converts accumulated electricity and water meter readings into usage amounts. Based on business needs, the master table is split into virtual sub-tables to calculate usage amounts, ensuring data accuracy.

Energy Consumption Model: An energy consumption model is a data model used to systematically analyze and display energy consumption.

ETL converter: The data platform is a core component that transforms the diverse and non-standard data formats reported by devices into standardized data formats that the platform can uniformly recognize and process.
